The station wagon Ford Mondeo 2010 - 2015 year modification 1.6 MT (120 hp)

Engine
Engine type	petrol
Engine location	front, transverse
Engine capacity, cm³	1596
Boost type	No
Maximum power, hp/kW at rpm	120 / 88 at 6300
Maximum torque, N*m at rpm	160 at 4100
Cylinder arrangement	in-line
Number of cylinders	4
Number of valves per cylinder	4
Engine power supply system	direct injection into the combustion chamber
Compression ratio	11
Cylinder diameter and piston stroke, mm	79 × 81.4
General information
Brand country	USA
Model assembly	Belgium
Car class	D
Number of doors	5
Performance indicators
Maximum speed, km/h	190
Acceleration to 100 km/h, s	12.6
Ecological class	Euro 5
CO2 emissions, g/km	159
Fuel consumption, l city / highway / combined	9.2 / 5.4 / 6.8
Fuel type	Super (95)
Sizes in mm
Wheel size	205 / 55 / R16 215 / 55 / R16 215 / 50 / R17 235 / 45 / R18 235 / 40 / R19
Length	4837
Width	1886
Height	1512
Wheelbase	2850
Ground clearance	130
Front track width	1588
Rear track width	1605
Suspension and brakes
Type of front suspension	independent, spring
Type of rear suspension	independent, spring
Front brakes	disk ventilated
Rear brakes	disc
Transmission
Transmission	mechanical
Number of gears	5
Drive type	front
Volume and weight
Curb weight, kg	1455
Trunk volume min/max, l	489 / 1680
Gross weight, kg	2050
Fuel tank capacity, l	70

Ford Mondeo 1.6 MT (120 hp): A Comprehensive Overview

The Ford Mondeo 1.6 MT (120 hp) is a versatile and practical station wagon that combines functionality with a touch of elegance. Produced between 2010 and 2015, this model is part of the D-class segment, offering a spacious interior, reliable performance, and a range of features that cater to both families and individuals seeking a dependable vehicle. Assembled in Belgium, the Mondeo reflects Ford's commitment to quality and innovation, making it a strong contender in the competitive station wagon market.

Performance and Efficiency

Under the hood, the Ford Mondeo 1.6 MT is powered by a 1.6-liter petrol engine that delivers 120 horsepower and 160 Nm of torque. While it may not be the most powerful engine in its class, it provides a balanced mix of performance and fuel efficiency. The car accelerates from 0 to 100 km/h in 12.6 seconds, reaching a top speed of 190 km/h. With a combined fuel consumption of 6.8 liters per 100 kilometers, the Mondeo is relatively economical, especially for a vehicle of its size. The Euro 5 ecological class and CO2 emissions of 159 g/km further highlight its environmental credentials.

Design and Practicality

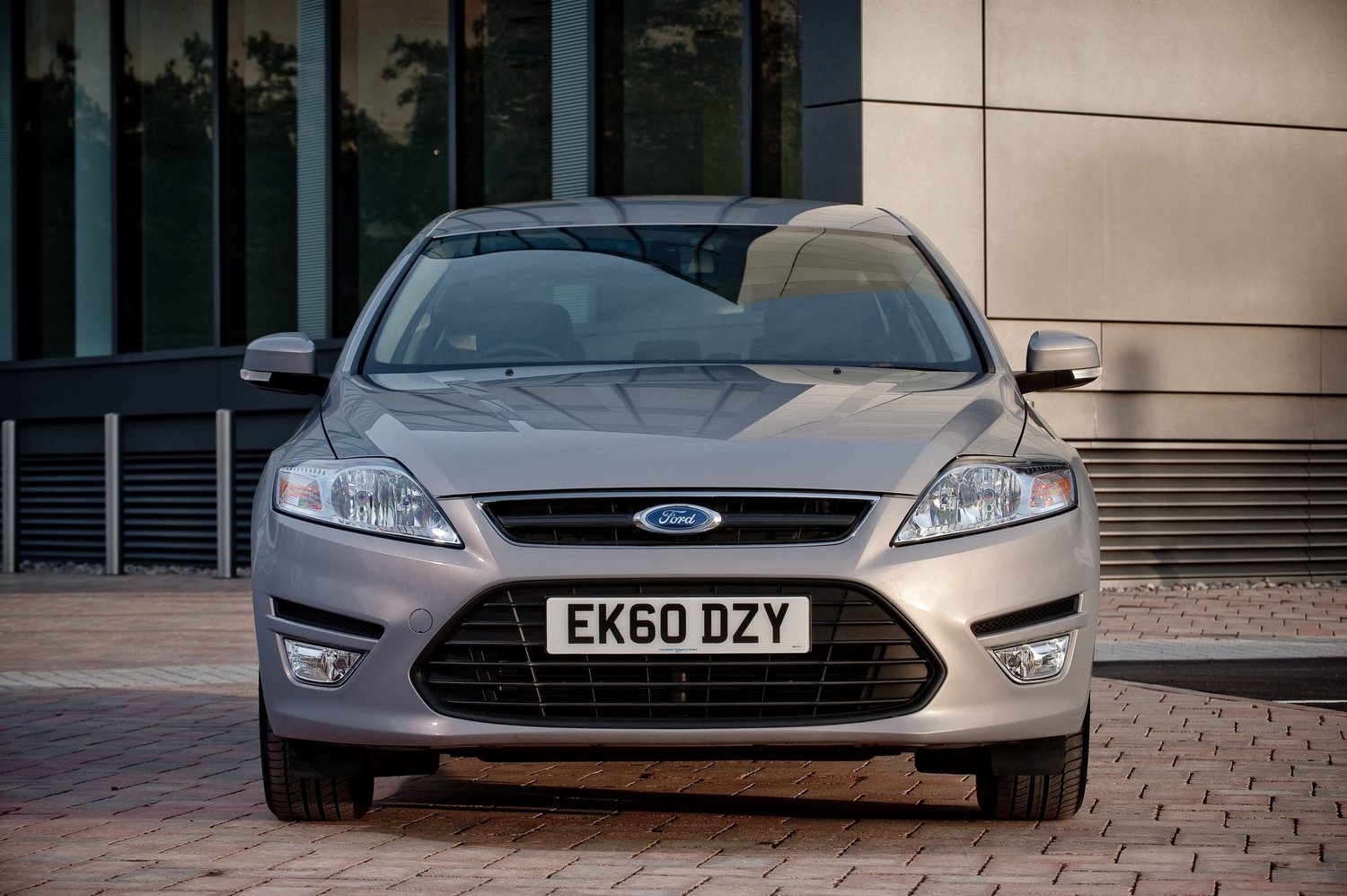

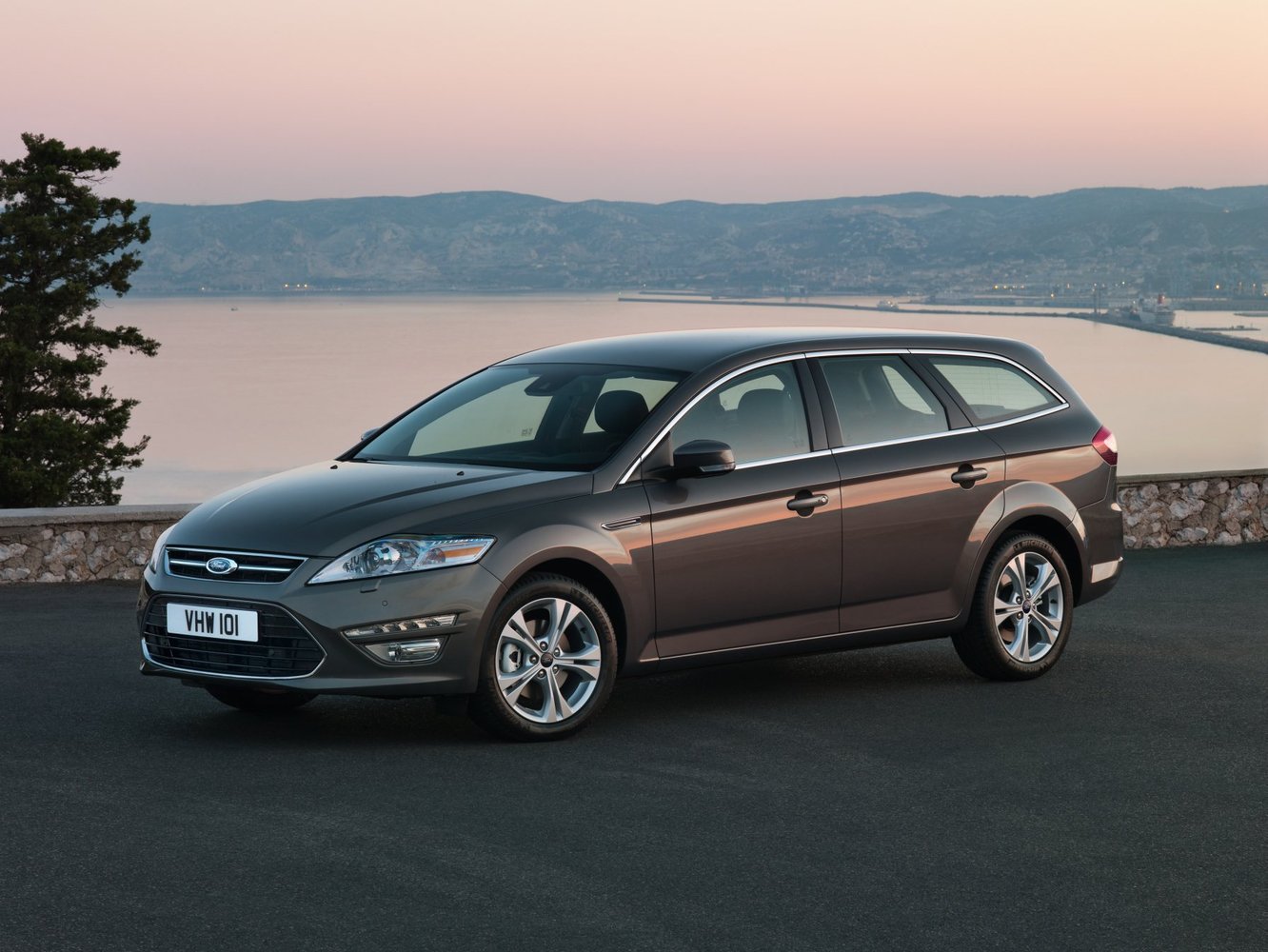

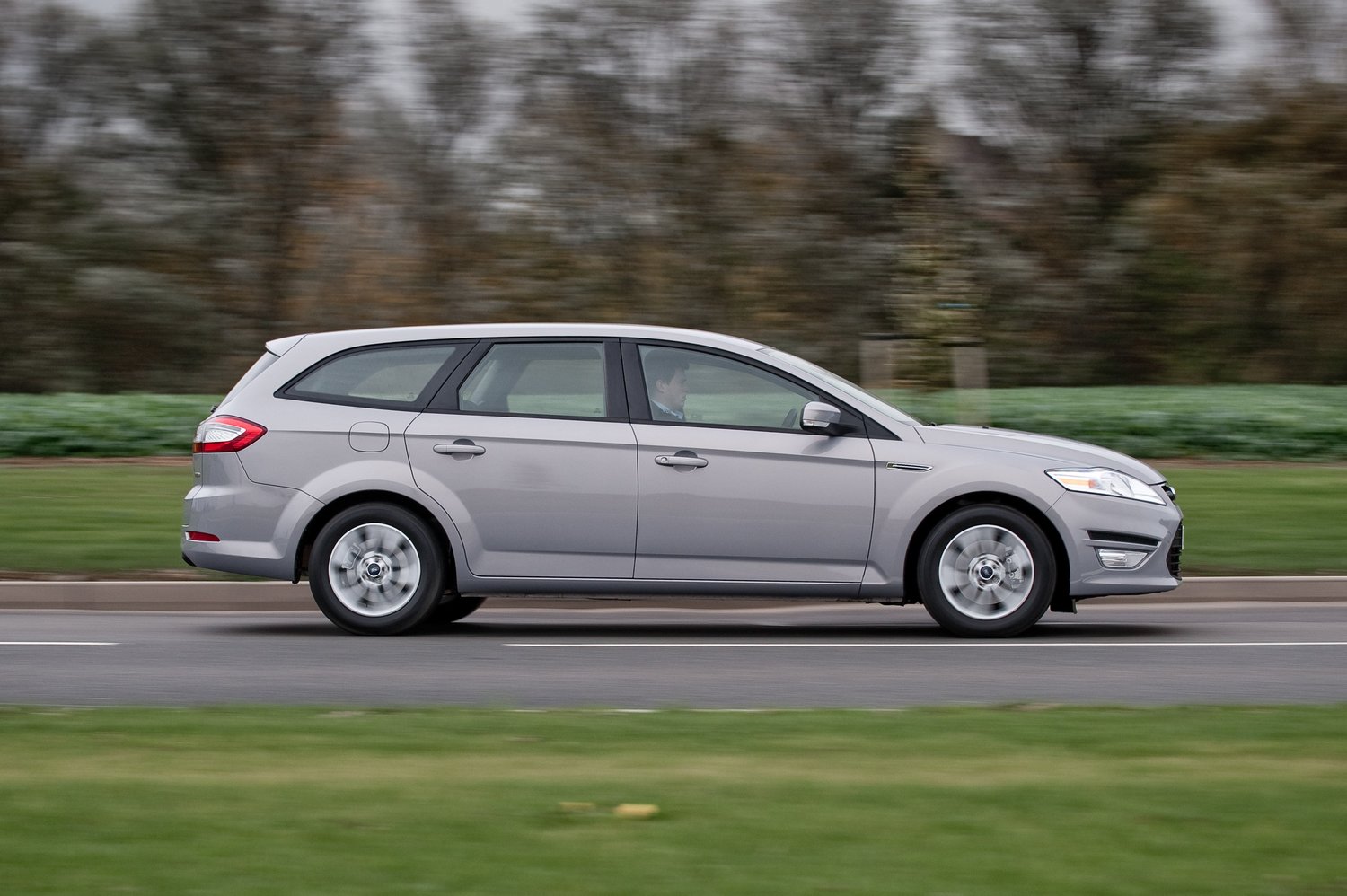

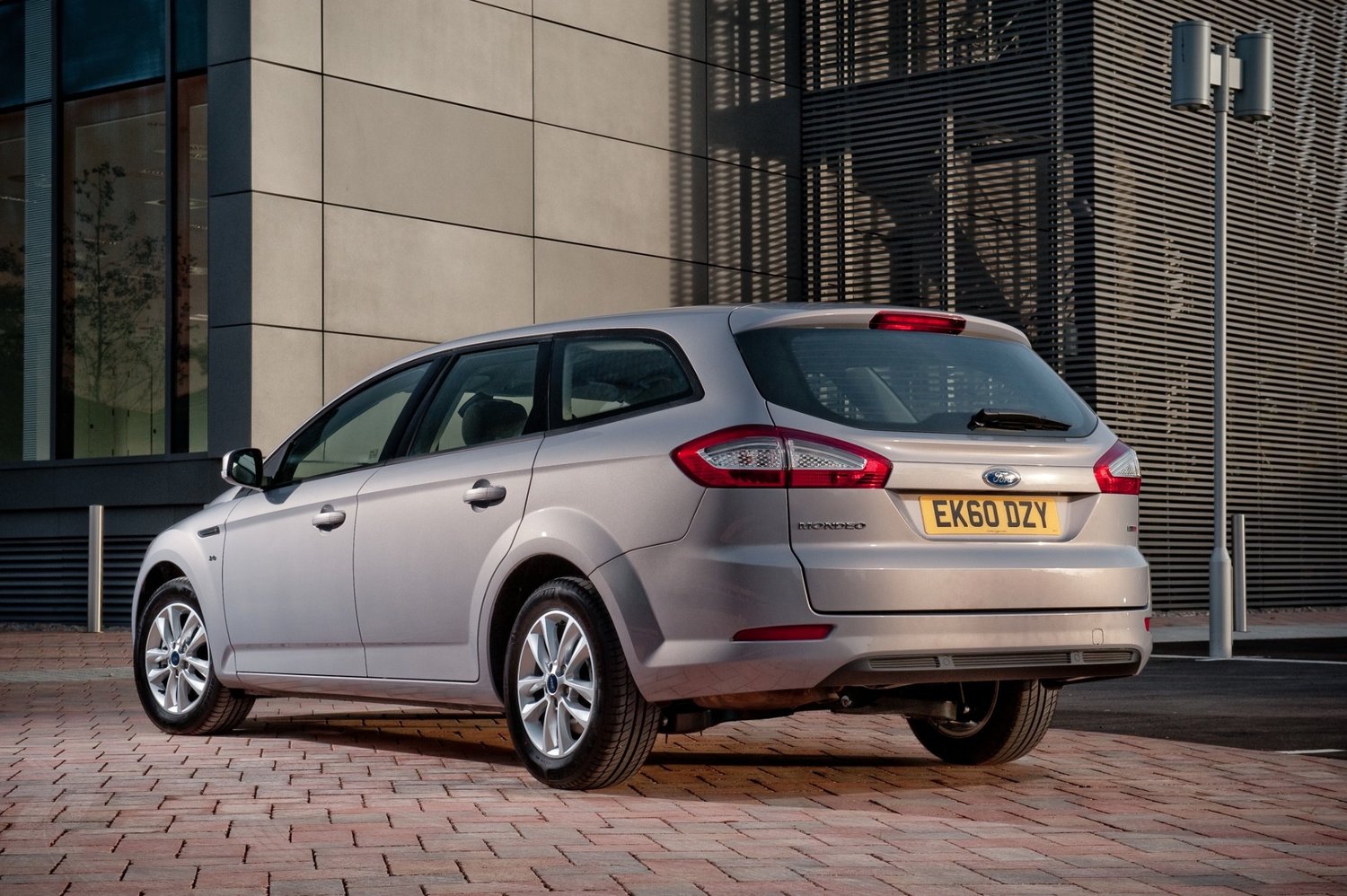

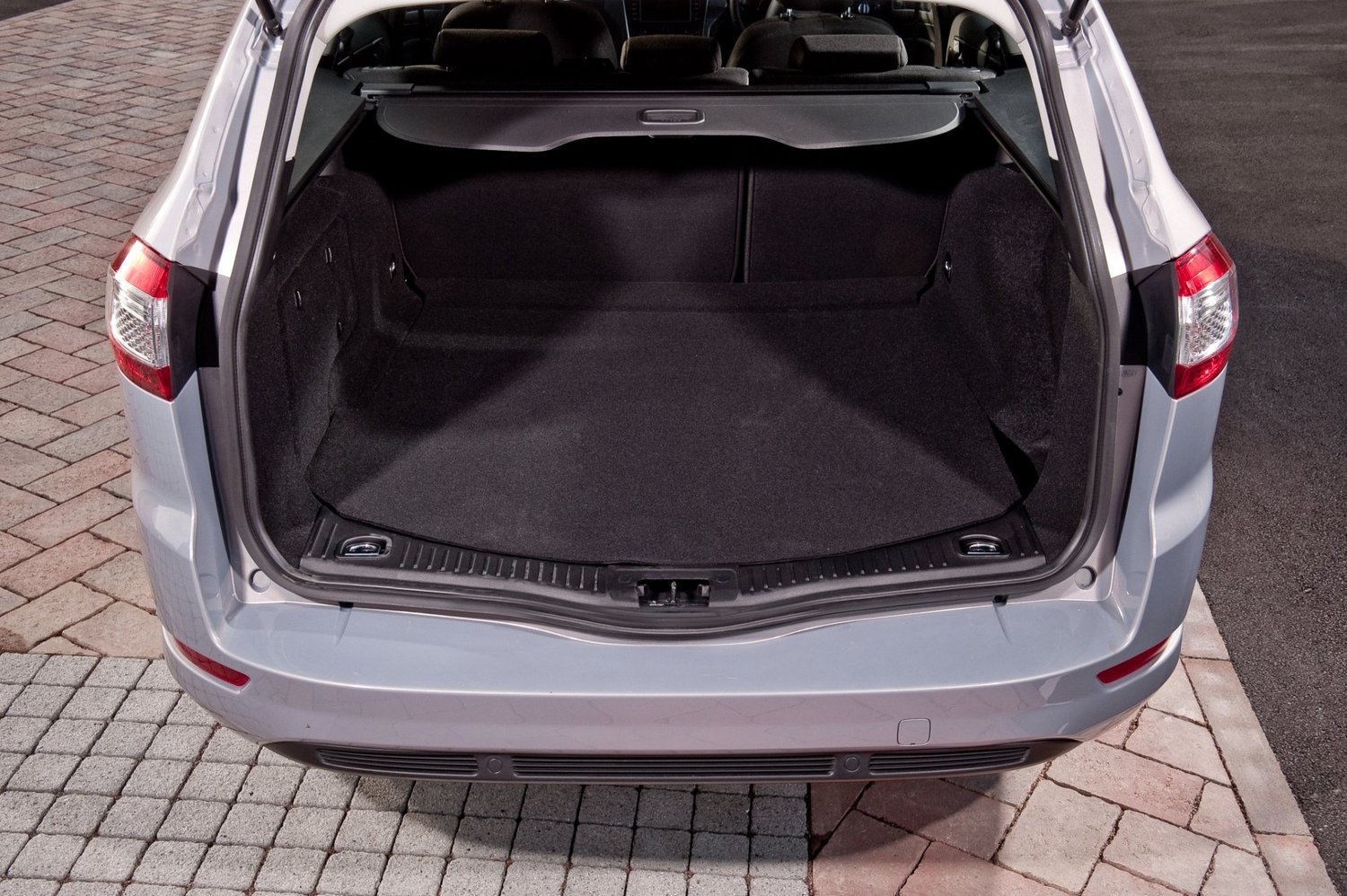

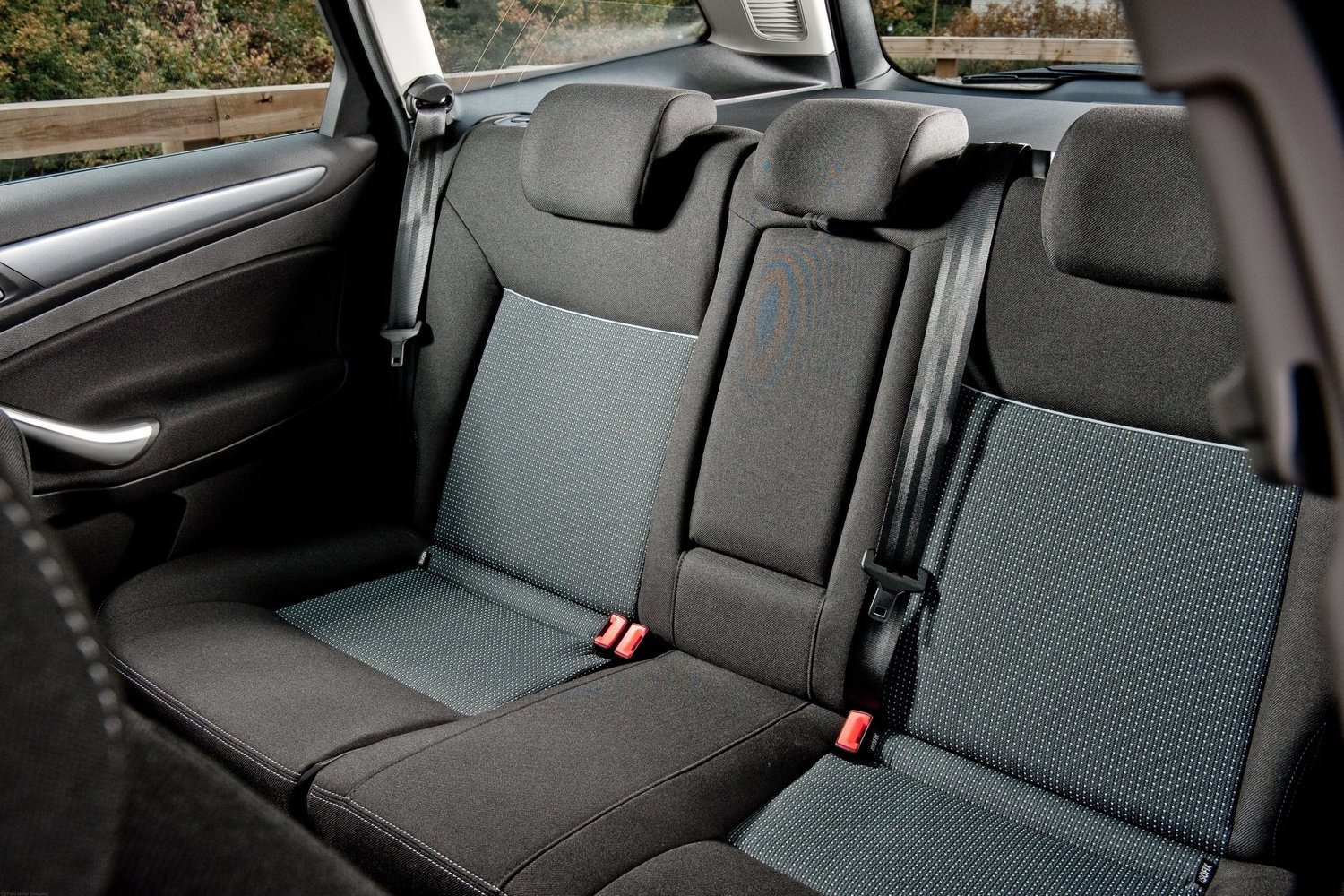

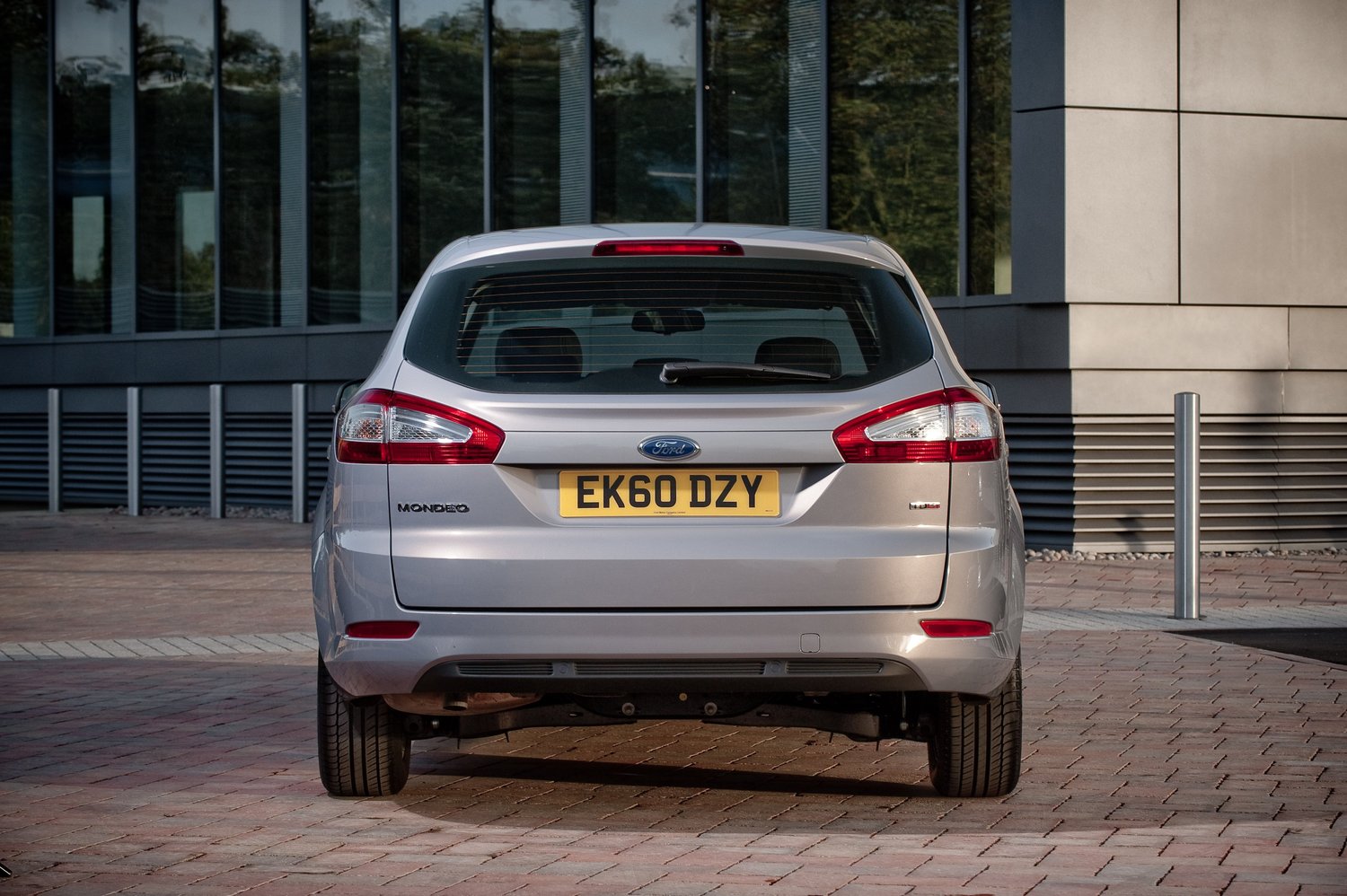

The Ford Mondeo station wagon boasts a sleek and modern design, with dimensions that emphasize its spaciousness. Measuring 4837 mm in length, 1886 mm in width, and 1512 mm in height, the Mondeo offers ample room for passengers and cargo. The 2850 mm wheelbase ensures a comfortable ride, while the ground clearance of 130 mm provides decent off-road capability. The trunk volume is particularly impressive, ranging from 489 liters to a maximum of 1680 liters when the rear seats are folded down, making it an ideal choice for long trips or transporting bulky items.

Driving Dynamics

The Mondeo's front-wheel-drive system, combined with a 5-speed manual transmission, offers a smooth and engaging driving experience. The independent spring suspension on both the front and rear ensures a comfortable ride, even on uneven surfaces. Ventilated disc brakes at the front and standard disc brakes at the rear provide reliable stopping power, enhancing the overall safety of the vehicle. The car's handling is further complemented by a variety of wheel size options, ranging from 205/55 R16 to 235/40 R19, allowing drivers to customize their ride according to their preferences.

Pros and Cons

Pros: Spacious interior, practical station wagon design, decent fuel efficiency, reliable performance, and a comfortable ride.
Cons: The 1.6-liter engine may feel underpowered for some drivers, and the acceleration time of 12.6 seconds to 100 km/h is not particularly impressive.

Conclusion

The Ford Mondeo 1.6 MT (120 hp) is a well-rounded station wagon that offers a blend of practicality, comfort, and efficiency. While it may not be the most powerful or sporty option in its class, it excels in providing a reliable and spacious vehicle for everyday use. Whether you're a family looking for a dependable car for long journeys or an individual in need of a versatile vehicle for both work and leisure, the Mondeo is a solid choice. Its combination of modern design, efficient performance, and practical features makes it a worthy contender in the D-class segment.
