The minivan Ford S-MAX 2006 - 2010 year modification 1.8 MT (100 hp)

Engine
Engine type	diesel
Engine location	front, transverse
Engine capacity, cm³	1753
Boost type	turbocharging
Maximum power, hp/kW at rpm	100 / 74 at 3850
Maximum torque, N*m at rpm	300 at 1800
Cylinder arrangement	in-line
Number of cylinders	4
Number of valves per cylinder	2
Engine power supply system	engine with undivided combustion chambers (direct fuel injection)
Compression ratio	18.5
Cylinder diameter and piston stroke, mm	82.5 × 82
General information
Brand country	USA
Model assembly	Belgium
Car class	M
Number of doors	5
Performance indicators
Fuel consumption, l city / highway / combined	7.9 / 5.2 / —
Fuel type	diesel fuel
Maximum speed, km/h	172
Acceleration to 100 km/h, s	14
Security
Safety assessment	5
Rating name	Euro NCAP
Sizes in mm
Length	4768
Width	1854
Height	1658
Wheelbase	2850
Front track width	1589
Rear track width	1605
Wheel size	215 / 60 / R16
Suspension and brakes
Type of front suspension	independent, spring
Type of rear suspension	independent, spring
Front brakes	disc
Rear brakes	disc
Transmission
Transmission	mechanical
Number of gears	5
Drive type	front
Volume and weight
Fuel tank capacity, l	70
Curb weight, kg	1655
Trunk volume min/max, l	285 / 2100
Gross weight, kg	2505

Ford S-MAX: A Versatile and Reliable Minivan

The Ford S-MAX, produced between 2006 and 2010, is a standout minivan that combines practicality, performance, and safety. Assembled in Belgium, this American-branded vehicle is designed for families and individuals who need a spacious yet efficient car. With its 1.8-liter diesel engine and 5-speed manual transmission, the S-MAX offers a balance of power and fuel economy, making it an excellent choice for both city driving and long-distance travel.

Performance and Efficiency

The Ford S-MAX is powered by a 1.8-liter turbocharged diesel engine, delivering 100 horsepower and 300 Nm of torque. This engine ensures smooth acceleration and reliable performance, with a 0-100 km/h time of 14 seconds and a top speed of 172 km/h. The car's fuel efficiency is impressive, with a city consumption of 7.9 liters per 100 km and a highway consumption of 5.2 liters per 100 km. The 70-liter fuel tank further enhances its long-range capabilities, making it ideal for road trips.

Design and Space

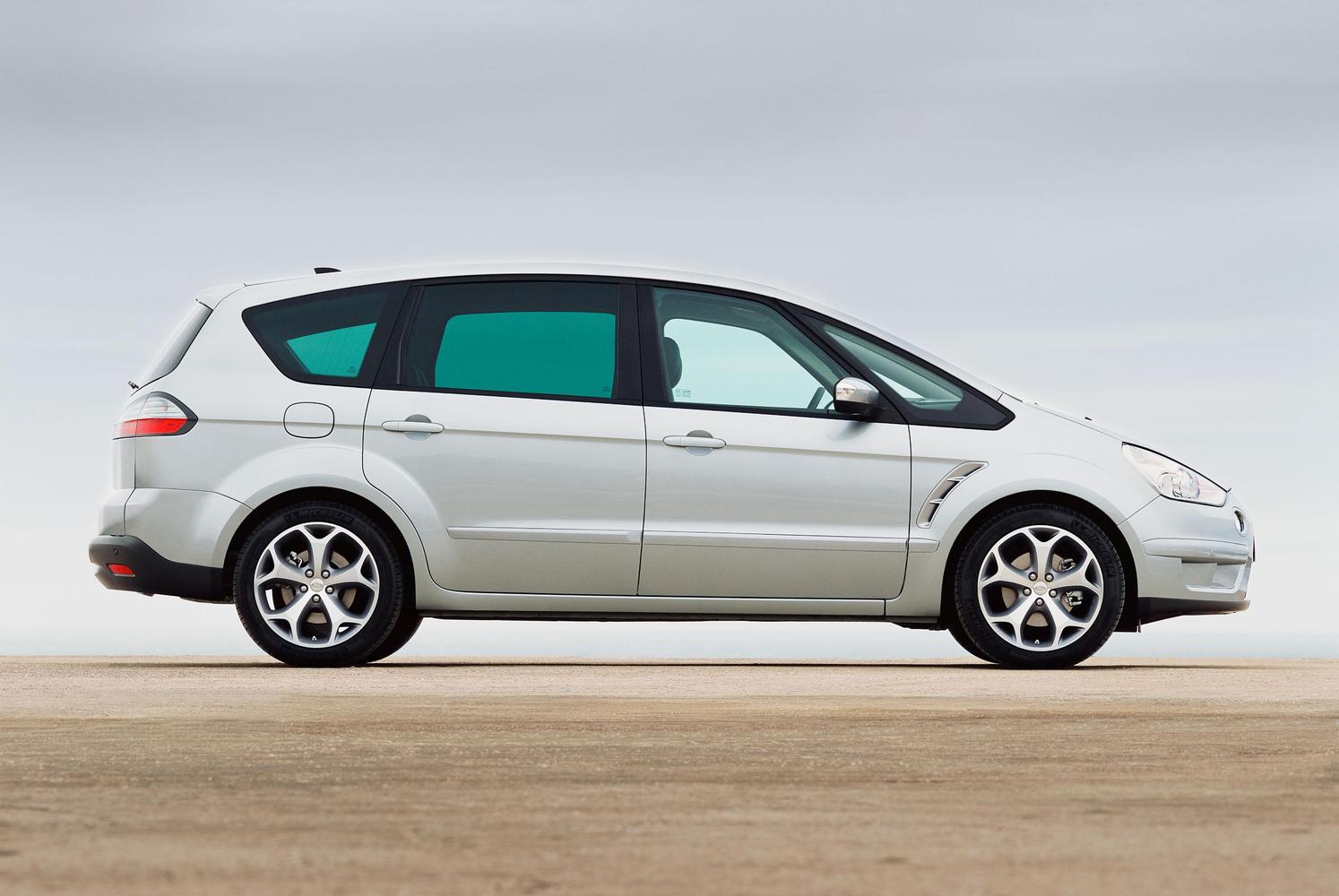

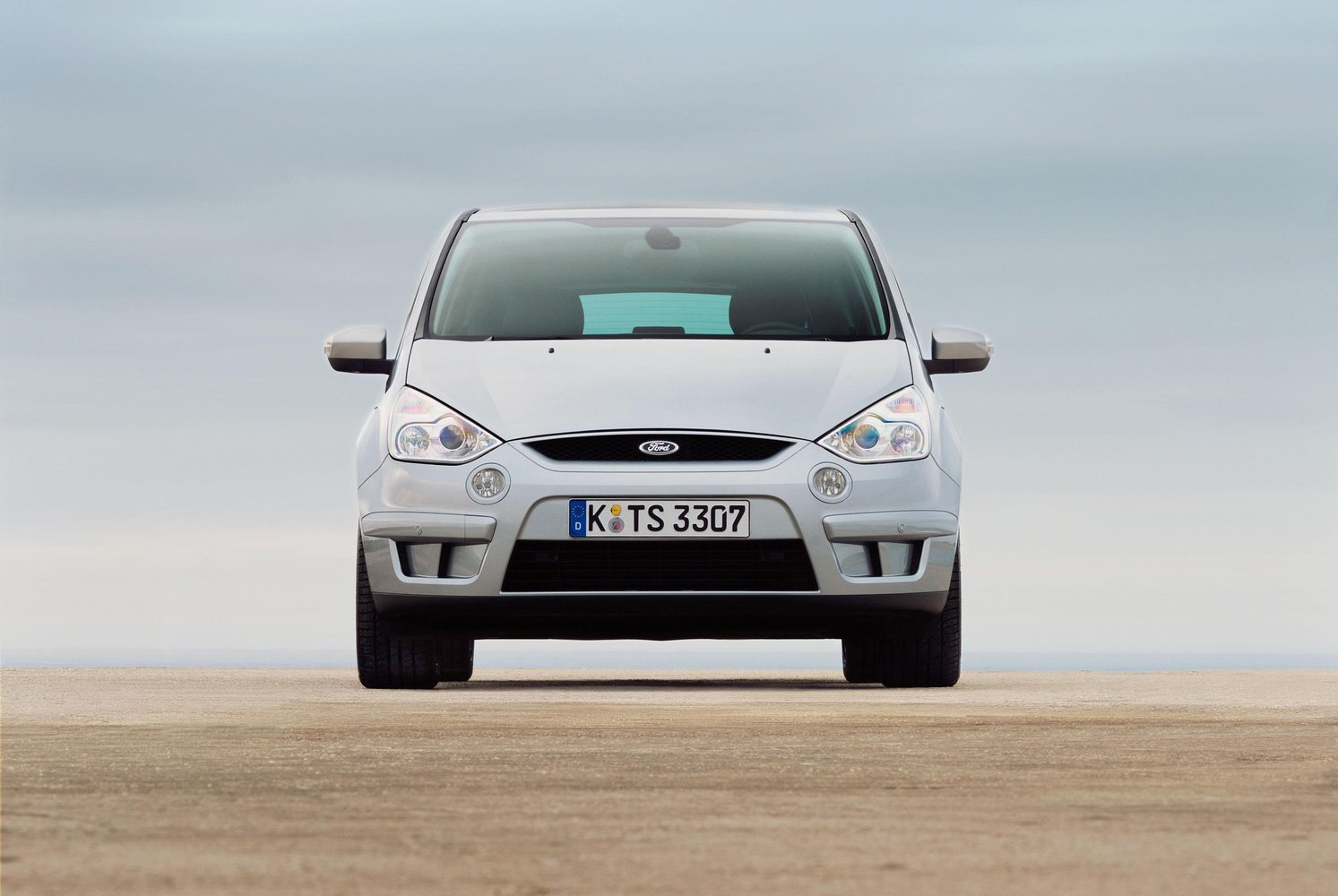

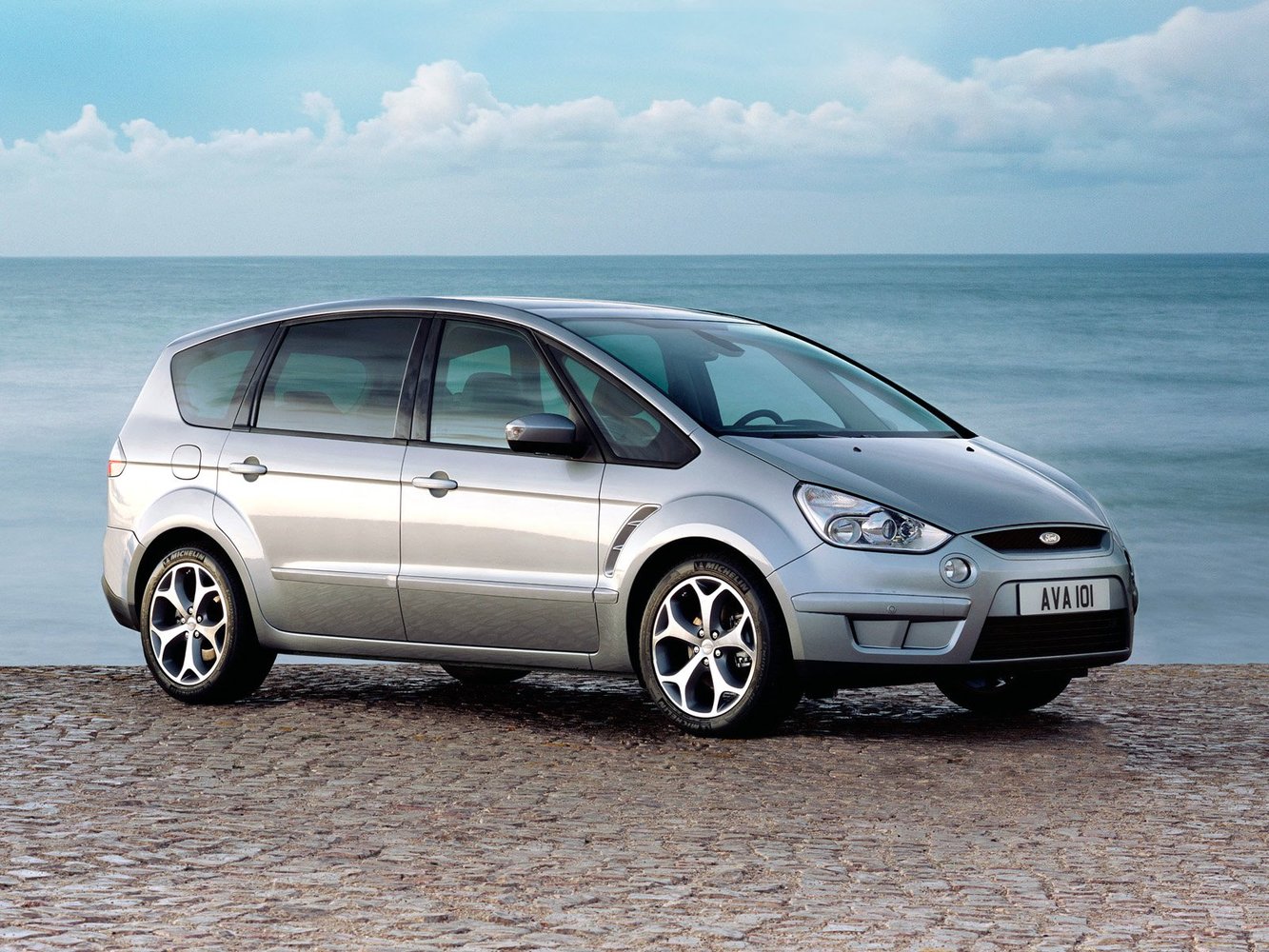

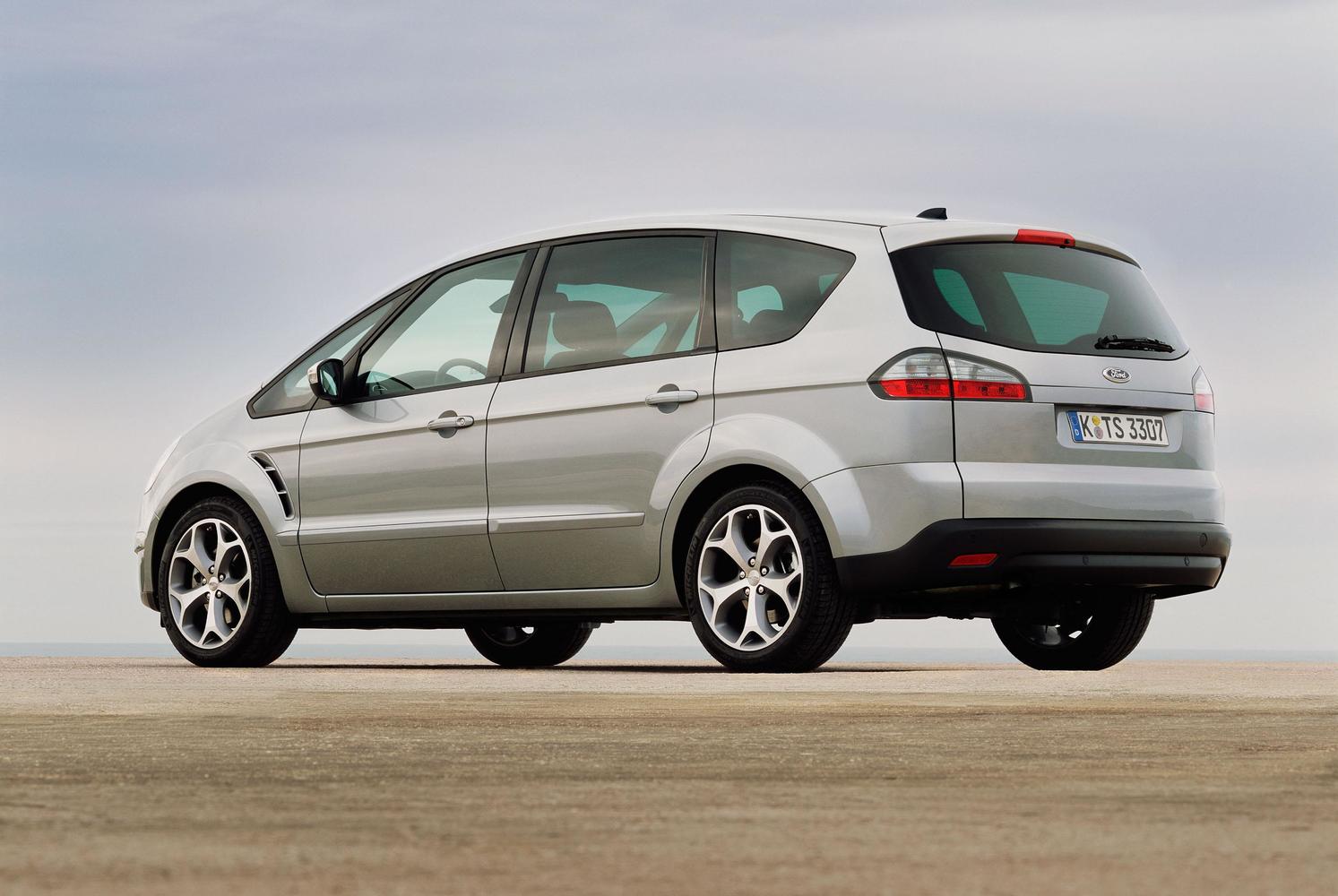

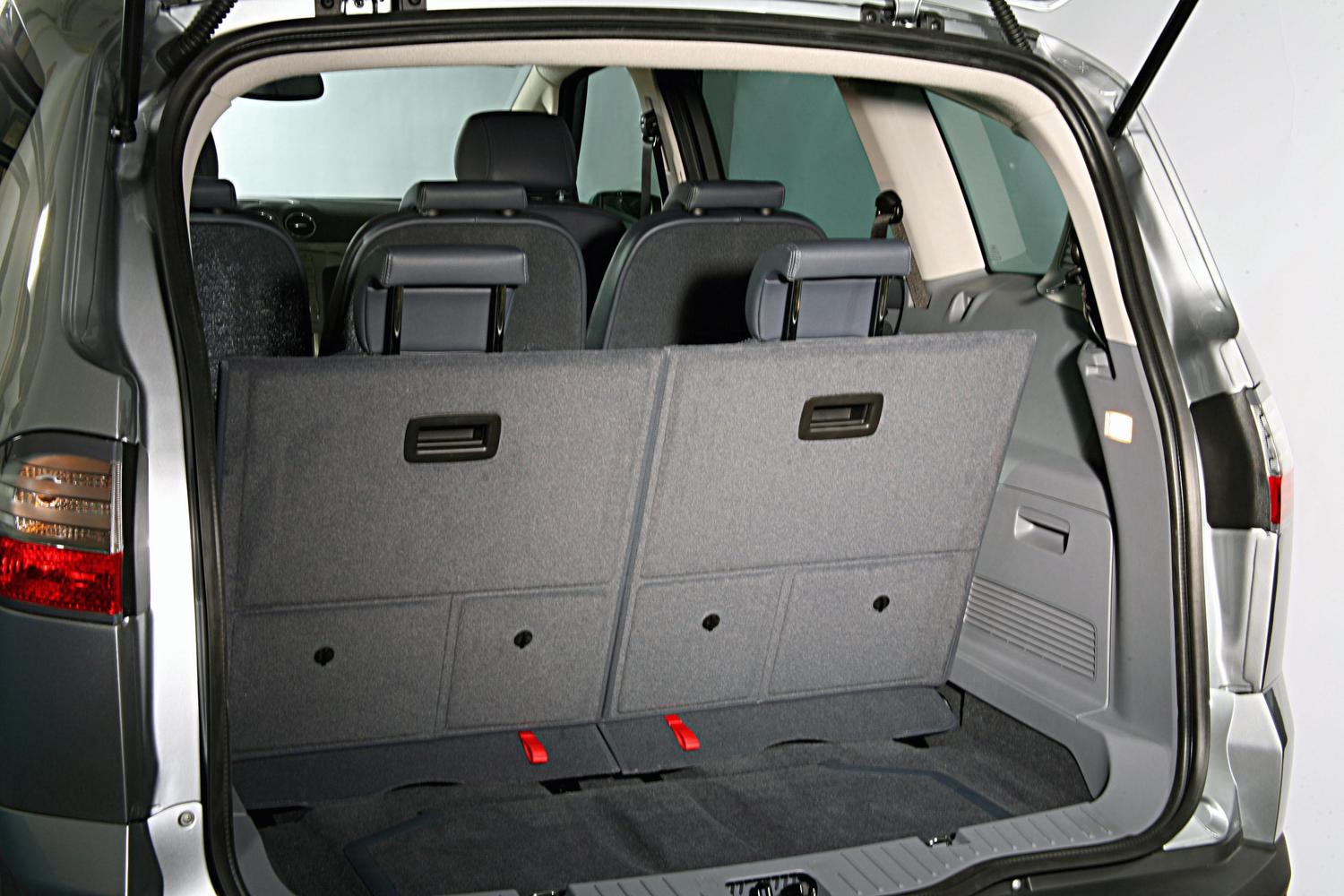

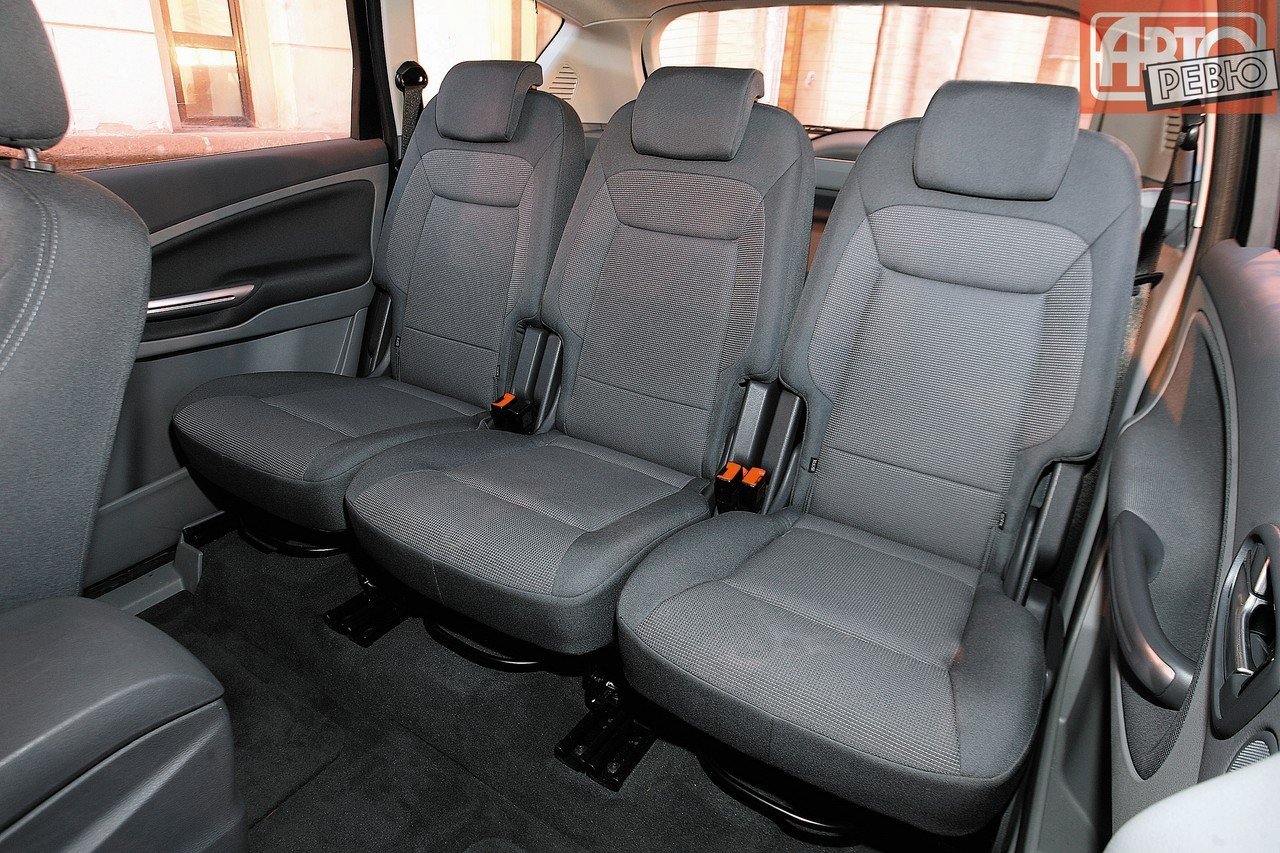

The S-MAX boasts a sleek and modern design, with dimensions of 4768 mm in length, 1854 mm in width, and 1658 mm in height. Its spacious interior can comfortably accommodate up to seven passengers, with a flexible seating arrangement that allows for easy configuration. The trunk offers a minimum volume of 285 liters, which can be expanded to an impressive 2100 liters by folding down the rear seats. This makes the S-MAX perfect for transporting large items or luggage.

Safety and Reliability

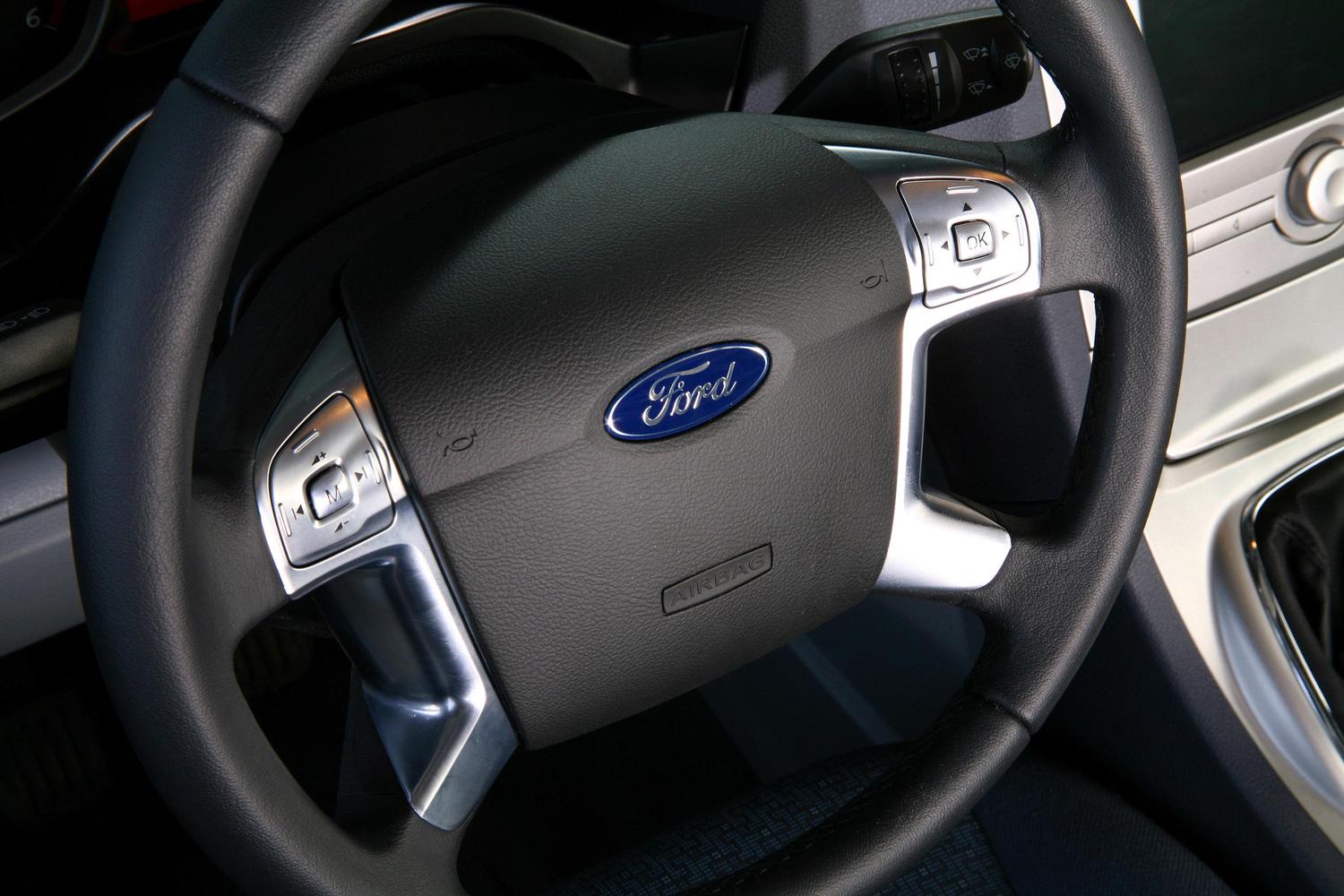

Safety is a top priority in the Ford S-MAX, as evidenced by its 5-star Euro NCAP safety rating. The car is equipped with advanced safety features, including front and rear disc brakes, independent spring suspension, and a robust body structure. These features ensure a secure and stable driving experience, even in challenging conditions. The S-MAX also comes with driver and passenger airbags, providing additional protection in the event of a collision.

Pros and Cons

Pros: Spacious interior, excellent fuel efficiency, high safety rating, versatile seating and storage options, reliable diesel engine.
Cons: Moderate acceleration, limited availability due to discontinued production, basic infotainment system compared to newer models.

Conclusion

The Ford S-MAX is a well-rounded minivan that excels in practicality, efficiency, and safety. Its spacious interior, reliable performance, and high safety standards make it an excellent choice for families and individuals alike. While it may not be the fastest or most technologically advanced vehicle on the market, its versatility and dependability make it a standout option in its class. Whether you're navigating city streets or embarking on a cross-country adventure, the Ford S-MAX is a dependable companion that delivers on all fronts.
