The station wagon Hyundai i40 2015 - 2016 year modification Active Plus 1.7 AMT (141 hp)

Anti-theft protection
Central lock	Yes
Standard immobilizer	Yes
Standard alarm system	Yes
Comfort
Air conditioner	Yes
Climate control	Yes
Power steering	Yes

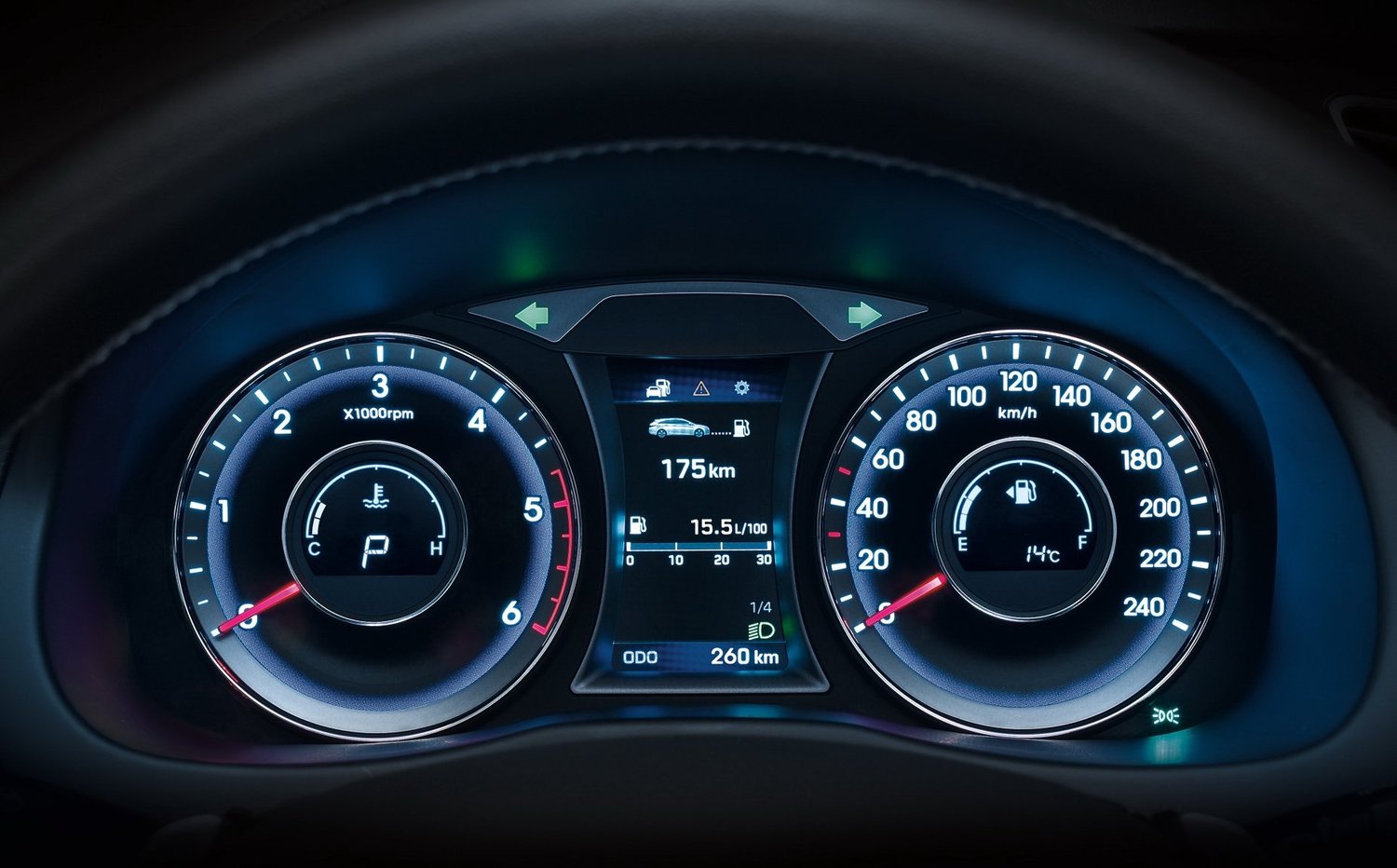

Onboard computer	Yes
Cruise control	Yes
Steering wheel height adjustment	Yes
Steering wheel reach adjustment	Yes
Rear view camera	Yes
Engine
Engine type	diesel
Engine location	front, transverse
Engine capacity, cm³	1685
Boost type	turbocharging
Maximum power, hp/kW at rpm	141 / 104 at 4000
Maximum torque, N*m at rpm	340 at 1750 - 2500
Cylinder arrangement	in-line
Number of cylinders	4
Number of valves per cylinder	4
Engine power supply system	engine with undivided combustion chambers (direct fuel injection)
Compression ratio	15.7
Cylinder diameter and piston stroke, mm	77.2 × 90
Exterior elements
Roof rails	Yes
Alloy wheels 16"	Yes
Metallic paint coating	Yes
General information
Brand country	South Korea
Model assembly	South Korea
Car class	D
Number of doors	5
Interior
Leather steering wheel trim	Yes

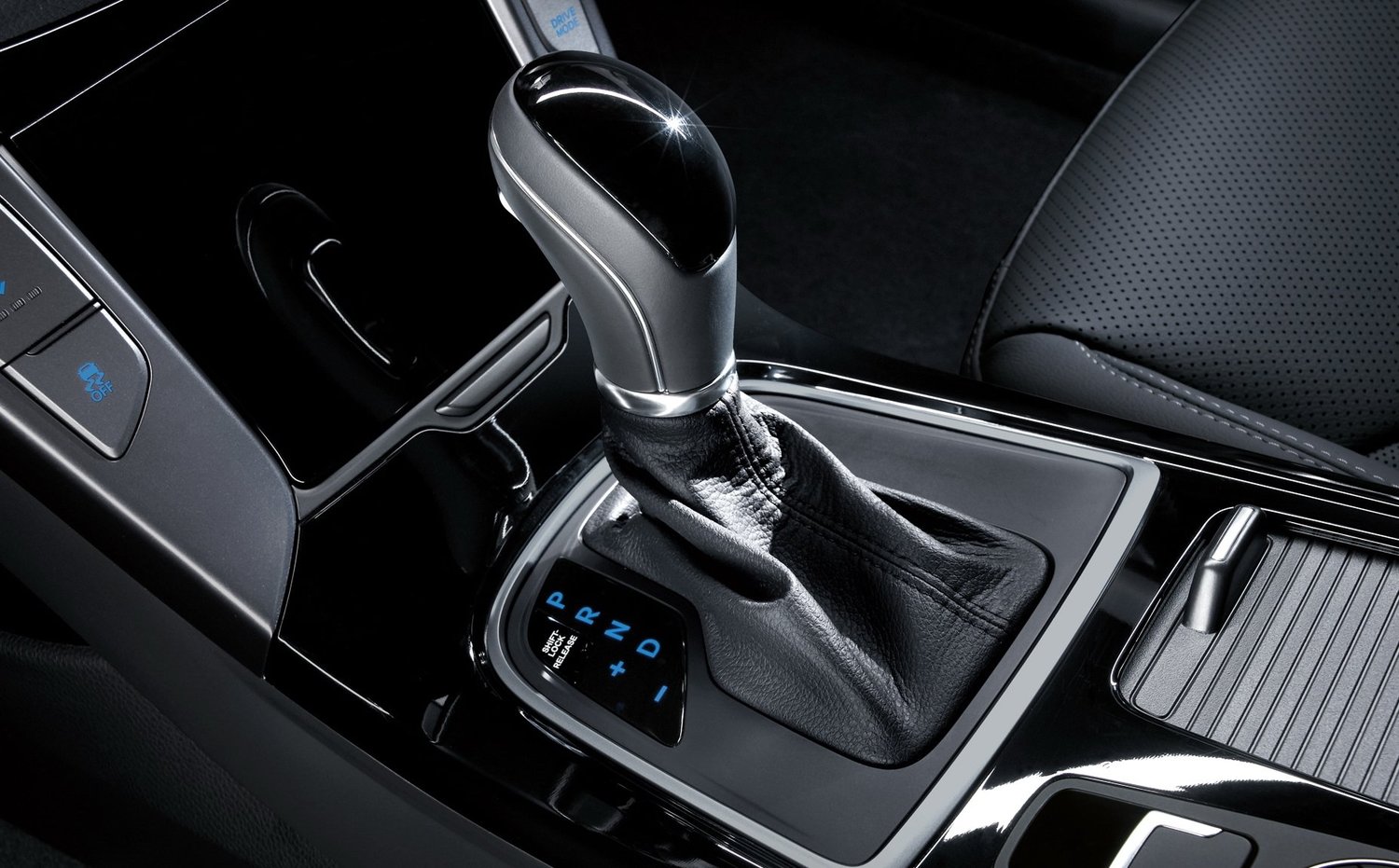

Leather trim for gear shift lever	Yes

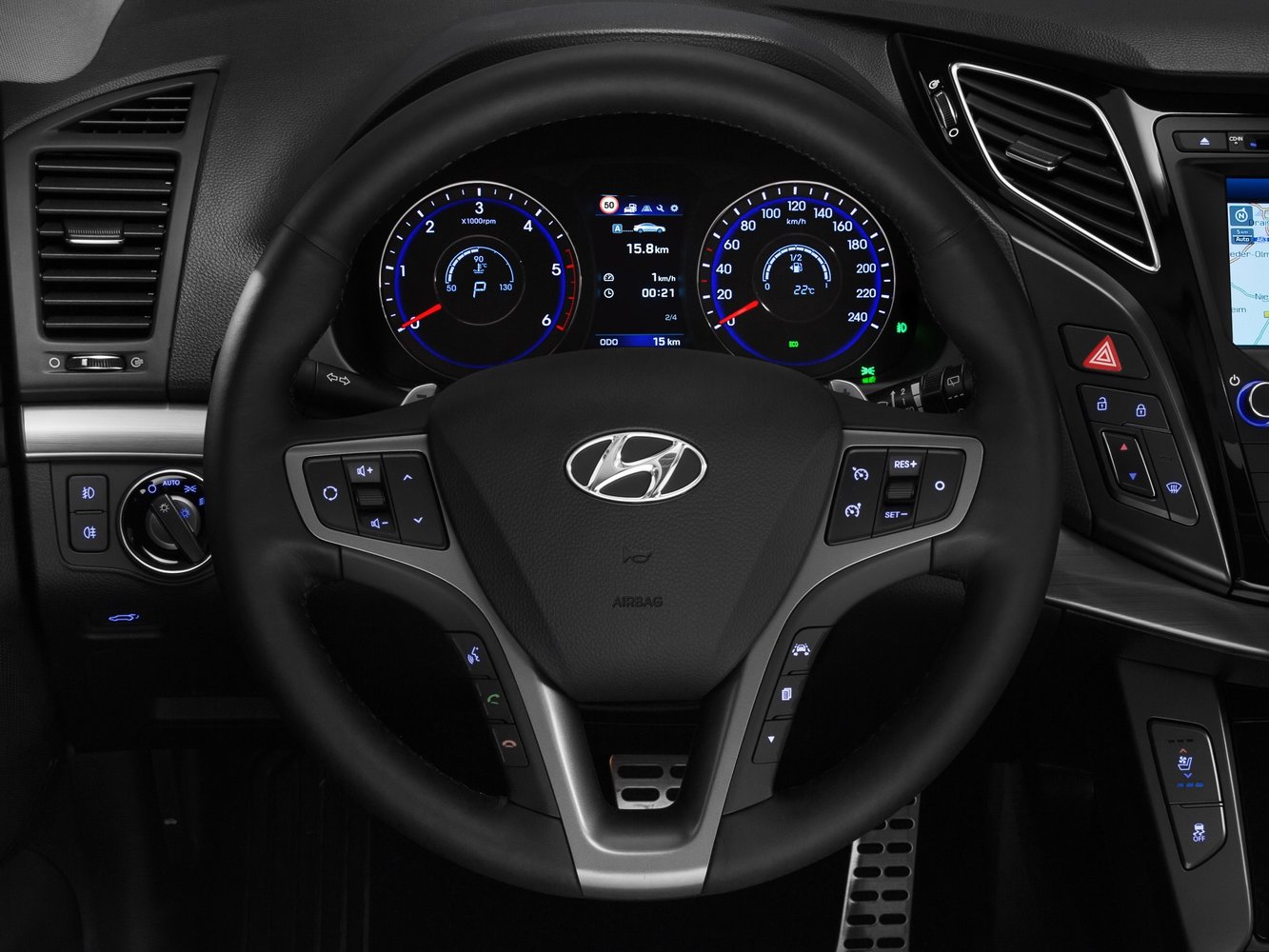

Multifunctional steering wheel	Yes
Heated front seats	Yes
Electric windows front	Yes
Electric windows rear	Yes
Front central armrest	Yes
Third rear headrest	Yes
Folding rear seat	Yes
Steering wheel shift paddles	Yes
Electrically adjustable seats	Yes
Combined interior	Yes
Heated rear seats	Yes
Multimedia
Standard audio preparation	Yes
Standard audio system with CD	Yes
AUX	Yes
12V socket	Yes
Bluetooth	Yes
USB port	Yes
Voice control	Yes
Overview
Fog lights	Yes
Electrically adjustable mirrors	Yes
Heated mirrors	Yes
Electric heating of windshield wiper zone	Yes
Light sensor	Yes
Rain sensor	Yes
Performance indicators
Fuel consumption, l city / highway / combined	5.9 / 4.7 / 5.1
Fuel type	diesel fuel
Maximum speed, km/h	200
Acceleration to 100 km/h, s	11
Ecological class	Euro 5
CO2 emissions, g/km	134
Security
ESP	Yes
Isofix / LATCH	Yes
Driver airbag	Yes
Passenger airbag	Yes
Window airbags (curtains)	Yes
Side airbags	Yes
Hill Start Assist System	Yes
Driver's knee airbag	Yes
ABS	Yes
Sizes in mm
Length	4775
Width	1815
Height	1470
Wheelbase	2770
Ground clearance	147
Front track width	1591
Rear track width	1597
Wheel size	205 / 60 / R16 215 / 50 / R17 225 / 45 / R18
Suspension and brakes
Type of front suspension	independent, spring
Type of rear suspension	independent, spring
Front brakes	disk ventilated
Rear brakes	disc
Transmission
Transmission	robot
Number of gears	7
Drive type	front
Volume and weight
Fuel tank capacity, l	70
Curb weight, kg	1614
Trunk volume min/max, l	553 / 1719
Gross weight, kg	2150

Hyundai i40 Active Plus 1.7 AMT: A Comprehensive Review

The Hyundai i40 Active Plus 1.7 AMT (141 hp) is a station wagon that combines practicality, efficiency, and modern technology. Produced between 2015 and 2016, this model is a standout in the D-class segment, offering a blend of performance, comfort, and safety features that cater to both families and individuals seeking a reliable and stylish vehicle.

Performance and Efficiency

Under the hood, the Hyundai i40 Active Plus is powered by a 1.7-liter turbocharged diesel engine, delivering 141 horsepower and 340 Nm of torque. This engine is paired with a 7-speed automated manual transmission (AMT), providing smooth and efficient gear shifts. The car accelerates from 0 to 100 km/h in 11 seconds, with a top speed of 200 km/h. Fuel efficiency is impressive, with combined consumption of 5.1 liters per 100 kilometers, making it an economical choice for long-distance travel.

Design and Dimensions

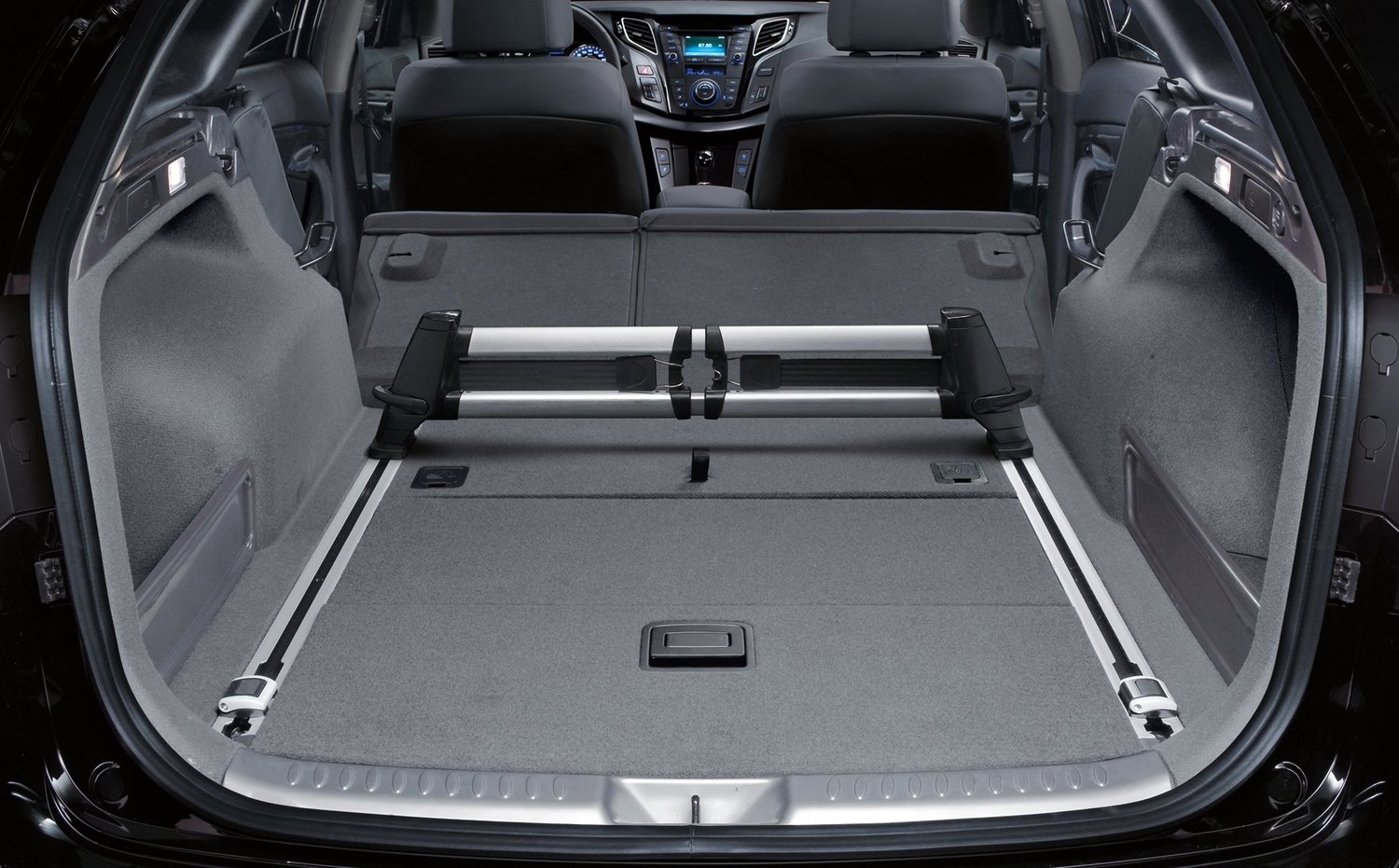

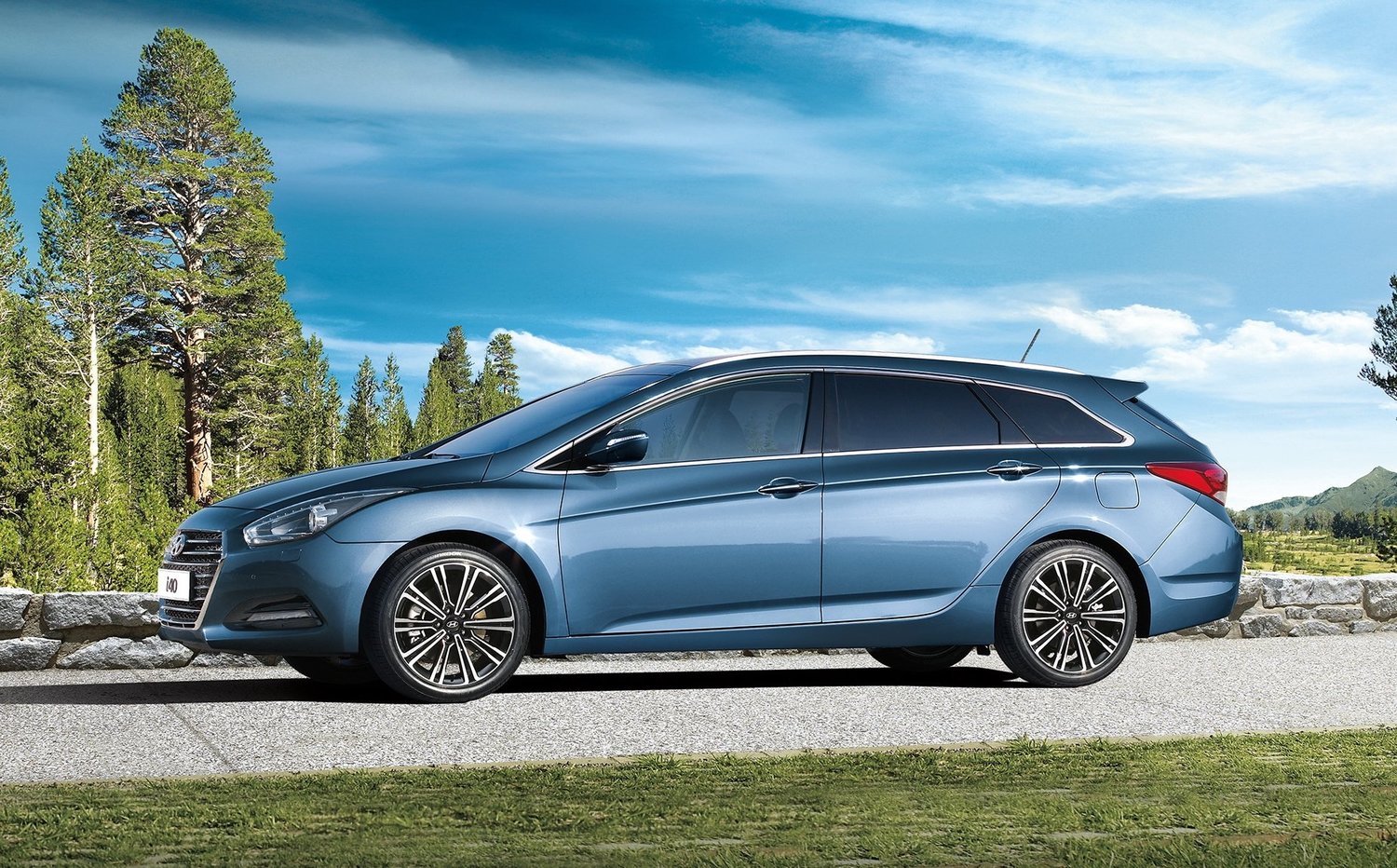

The i40 Active Plus boasts a sleek and aerodynamic design, with dimensions of 4775 mm in length, 1815 mm in width, and 1470 mm in height. The station wagon body type offers ample cargo space, with a trunk capacity ranging from 553 liters to 1719 liters when the rear seats are folded. The car's ground clearance of 147 mm ensures a comfortable ride on various road surfaces.

Comfort and Convenience

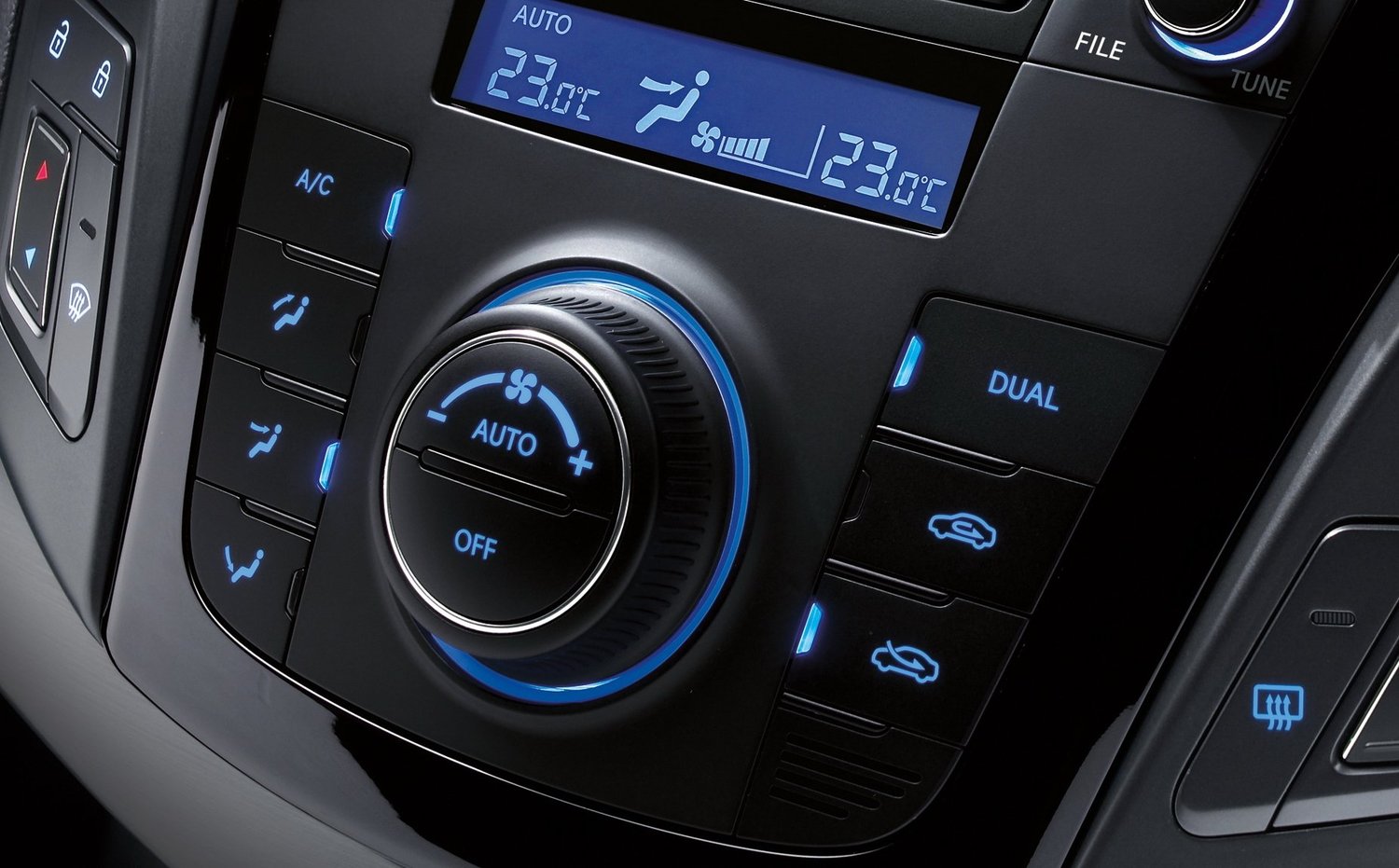

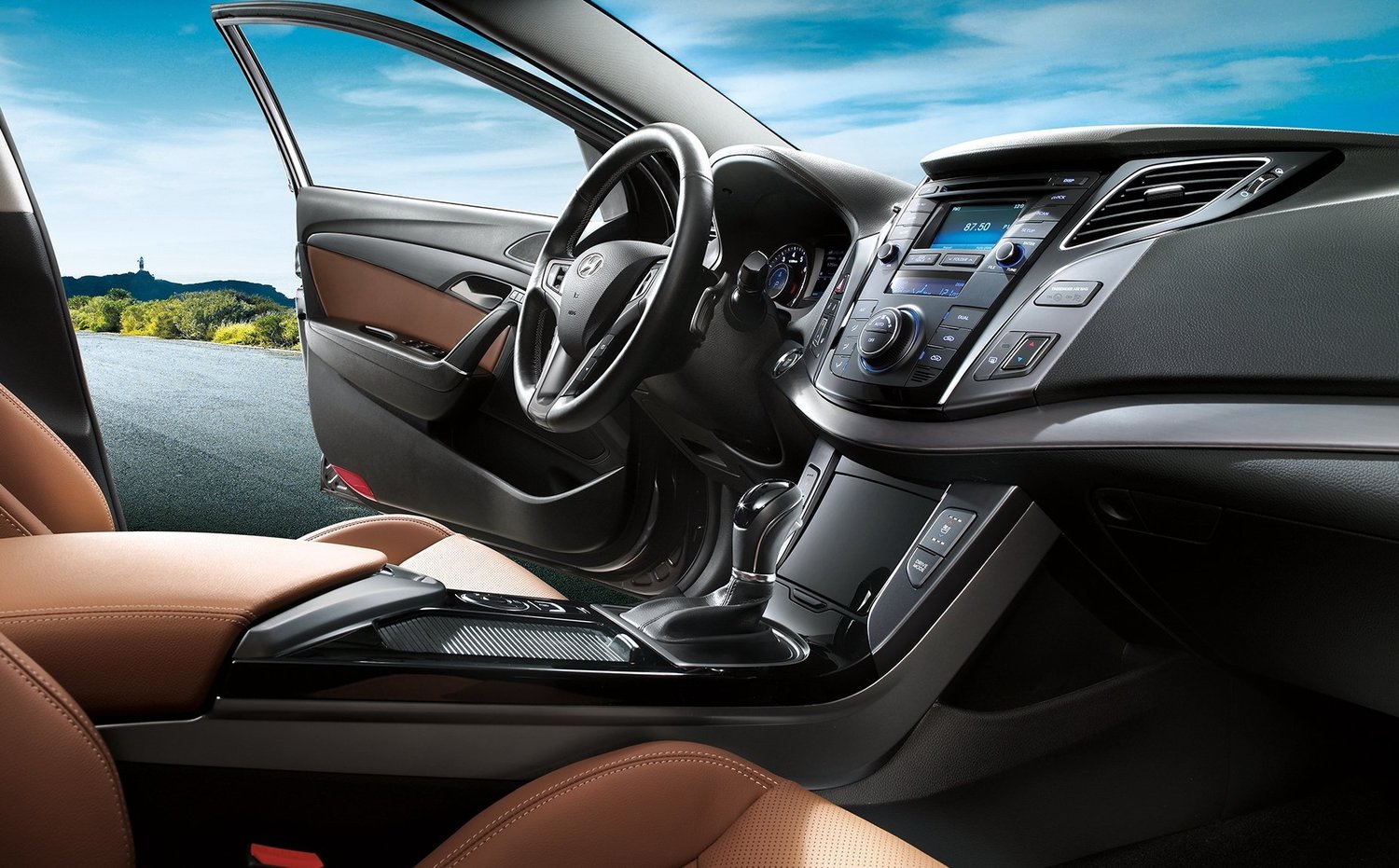

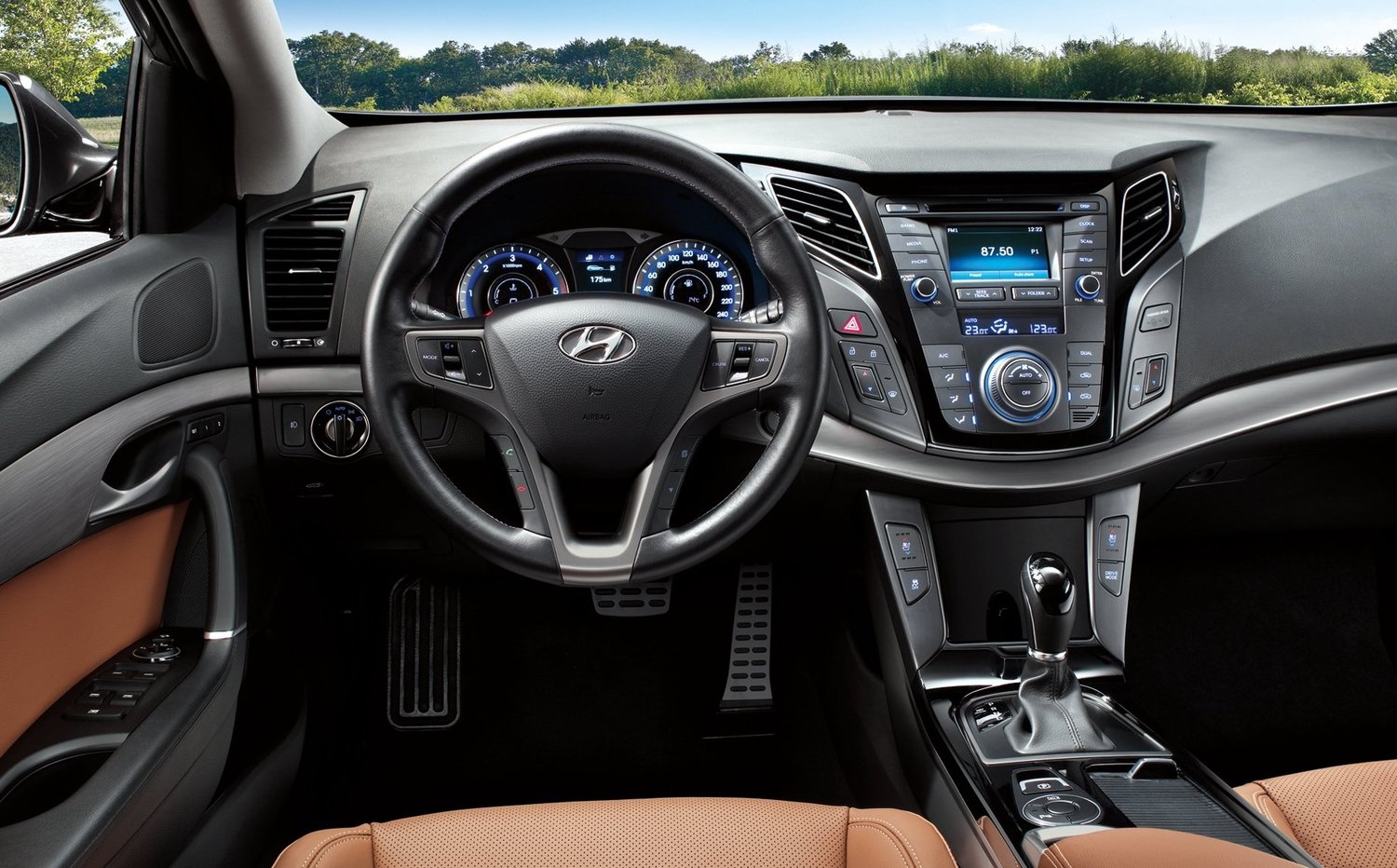

Inside, the Hyundai i40 Active Plus is equipped with a range of comfort features, including leather-trimmed steering wheel and gear shift lever, heated front and rear seats, and electrically adjustable seats. The multifunctional steering wheel, combined with paddle shifters, enhances the driving experience. The car also features a dual-zone climate control system, rearview camera, and a comprehensive multimedia system with Bluetooth, USB, and AUX connectivity.

Safety Features

Safety is a top priority in the Hyundai i40 Active Plus, with a suite of advanced features including ESP (Electronic Stability Program), ABS (Anti-lock Braking System), and multiple airbags (driver, passenger, side, curtain, and knee). The car also includes a Hill Start Assist System, ensuring stability on inclines. Additional safety features like Isofix child seat anchors and a standard alarm system provide peace of mind for families.

Technology and Multimedia

The i40 Active Plus is equipped with a standard audio system with CD player, voice control, and a 12V socket. The inclusion of Bluetooth and USB ports allows for seamless connectivity with smartphones and other devices. The car also features a light sensor, rain sensor, and electrically adjustable mirrors, enhancing convenience and driving comfort.

Pros and Cons

Pros: Excellent fuel efficiency, spacious interior, advanced safety features, modern technology, and a comfortable ride.
Cons: Acceleration may feel sluggish for some drivers, and the AMT transmission can be less smooth compared to traditional automatics.

Conclusion

The Hyundai i40 Active Plus 1.7 AMT is a well-rounded station wagon that offers a perfect blend of practicality, efficiency, and modern features. Its spacious interior, advanced safety systems, and economical diesel engine make it an ideal choice for families and long-distance travelers. While the AMT transmission may not appeal to everyone, the overall package of the i40 Active Plus makes it a compelling option in the D-class segment.
