The hatchback 5 doors Hyundai i30 2009 - 2012 year modification 1.6 AT (116 hp)

Engine
Engine type	diesel
Engine location	front, transverse
Engine capacity, cm³	1582
Boost type	turbocharging
Maximum power, hp/kW at rpm	116 / 85 at 4000
Maximum torque, N*m at rpm	255 at 1900 - 2750
Cylinder arrangement	in-line
Number of cylinders	4
Number of valves per cylinder	4
Engine power supply system	engine with undivided combustion chambers (direct fuel injection)
Compression ratio	17.3
Cylinder diameter and piston stroke, mm	77.2 × 84.5
General information
Brand country	South Korea
Model assembly	South Korea
Car class	C
Number of doors	5
Performance indicators
Fuel consumption, l city / highway / combined	7.6 / 4.9 / 5.9
Fuel type	diesel fuel
Maximum speed, km/h	184
Acceleration to 100 km/h, s	12.3
Ecological class	Euro 4
Sizes in mm
Length	4245
Width	1775
Height	1480
Wheelbase	2650
Ground clearance	160
Front track width	1546
Rear track width	1544
Wheel size	185 / 65 / R15
Suspension and brakes
Type of front suspension	independent, spring
Type of rear suspension	independent, spring
Front brakes	disk ventilated
Rear brakes	disc
Transmission
Transmission	automatic
Number of gears	4
Drive type	front
Volume and weight
Fuel tank capacity, l	53
Trunk volume min/max, l	340 / 1250

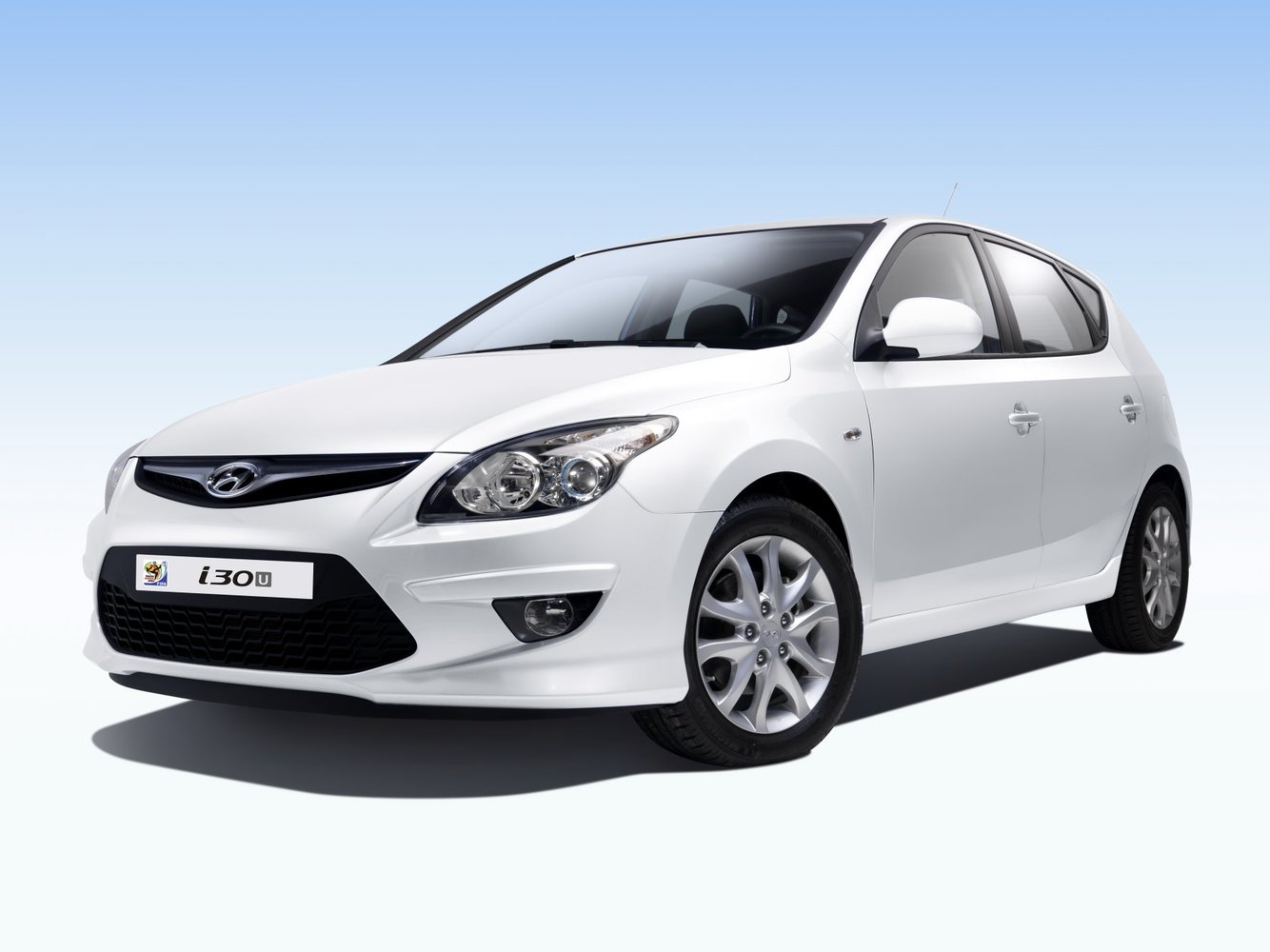

Hyundai i30: A Reliable and Efficient Hatchback

The Hyundai i30, a compact hatchback from South Korea, is a standout in the C-class segment. Produced between 2009 and 2012, this model combines practicality, efficiency, and modern design. With its 1.6-liter diesel engine and automatic transmission, the i30 offers a balanced driving experience suitable for both city commutes and highway journeys. Its 5-door hatchback design ensures versatility, making it an excellent choice for families or individuals seeking a reliable and spacious vehicle.

Performance and Efficiency

Equipped with a 1.6-liter turbocharged diesel engine, the Hyundai i30 delivers 116 horsepower and 255 Nm of torque, ensuring smooth acceleration and responsive performance. The car accelerates from 0 to 100 km/h in 12.3 seconds, reaching a top speed of 184 km/h. Its fuel efficiency is impressive, with combined fuel consumption of 5.9 liters per 100 kilometers, making it an economical choice for long-distance travel. The Euro 4 ecological class ensures compliance with environmental standards, reducing its carbon footprint.

Engine and Transmission

The i30's 4-cylinder diesel engine features direct fuel injection and a turbocharging system, providing optimal power delivery and fuel efficiency. The engine's in-line cylinder arrangement and 4-valve configuration enhance performance while maintaining reliability. Paired with a 4-speed automatic transmission, the car offers seamless gear shifts and a comfortable driving experience. The front-wheel-drive system ensures stability and control, even in challenging road conditions.

Design and Dimensions

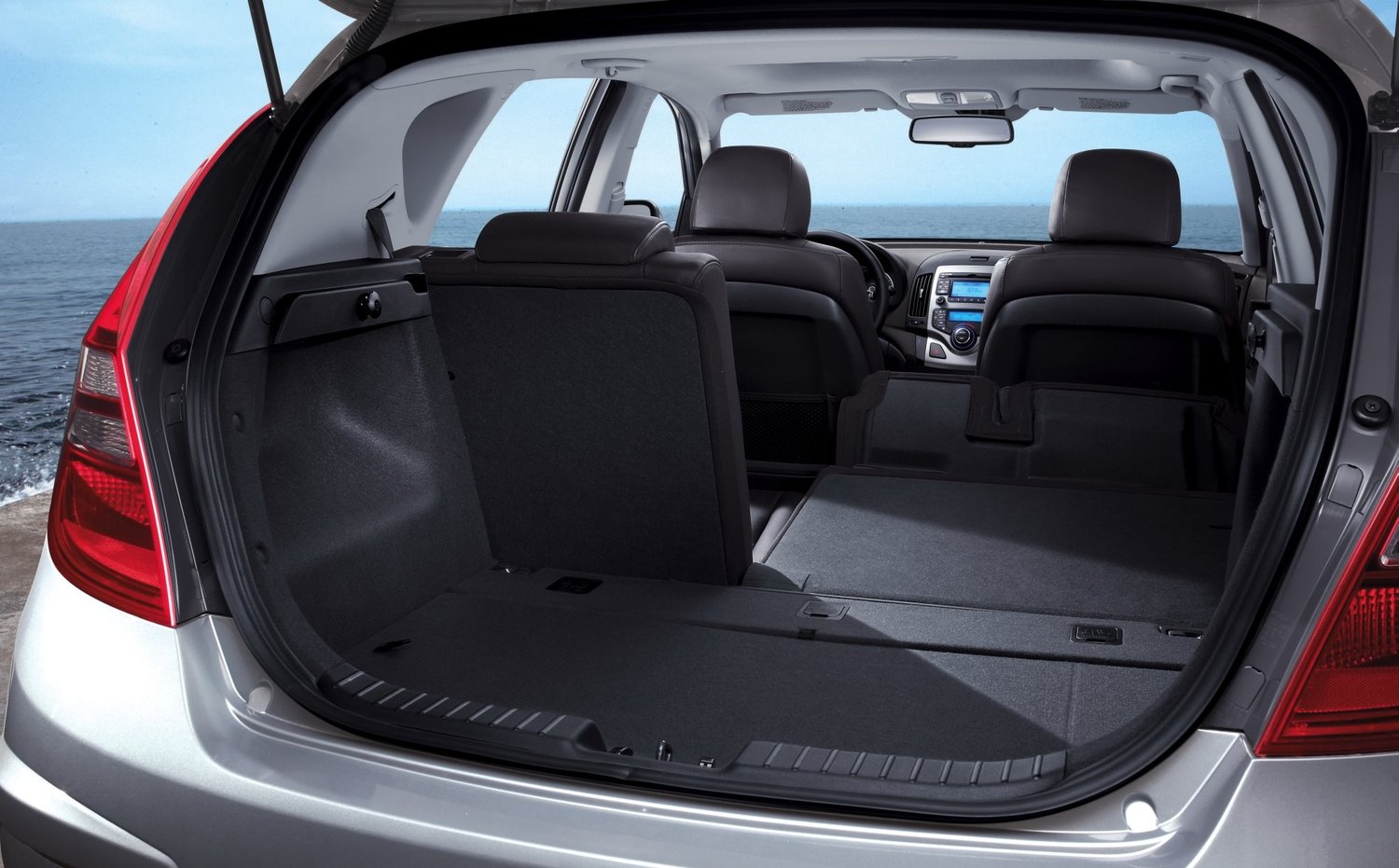

The Hyundai i30 boasts a sleek and modern design, with dimensions of 4245 mm in length, 1775 mm in width, and 1480 mm in height. Its 2650 mm wheelbase provides ample interior space, while the 160 mm ground clearance ensures smooth navigation over uneven surfaces. The 5-door hatchback design offers practicality, with a trunk capacity ranging from 340 liters to 1250 liters when the rear seats are folded, making it ideal for both daily errands and weekend getaways.

Suspension and Braking System

The i30 features an independent spring suspension system on both the front and rear, ensuring a comfortable ride by absorbing road imperfections. The ventilated front disc brakes and rear disc brakes provide reliable stopping power, enhancing safety and control. The car's suspension and braking systems work together to deliver a smooth and secure driving experience, even on winding roads or during sudden stops.

Key Features and Benefits

Fuel-efficient 1.6-liter turbocharged diesel engine with 116 horsepower.
Spacious 5-door hatchback design with a versatile trunk capacity of 340-1250 liters.
Comfortable and smooth ride thanks to independent spring suspension.
Reliable braking system with ventilated front and rear disc brakes.
Euro 4 ecological class compliance for reduced environmental impact.

Pros and Cons

The Hyundai i30 offers numerous advantages, including its fuel efficiency, spacious interior, and reliable performance. Its modern design and practical features make it a strong contender in the compact car segment. However, the 4-speed automatic transmission may feel outdated compared to newer models with more advanced gearboxes. Additionally, the car's acceleration time of 12.3 seconds to reach 100 km/h might not appeal to drivers seeking a sportier experience.

Conclusion

The Hyundai i30 is a well-rounded hatchback that excels in practicality, efficiency, and comfort. Its diesel engine and automatic transmission provide a balanced driving experience, while its spacious interior and versatile trunk make it ideal for various lifestyles. Although it may lack some of the advanced features found in newer models, the i30 remains a reliable and economical choice for those seeking a dependable compact car.
